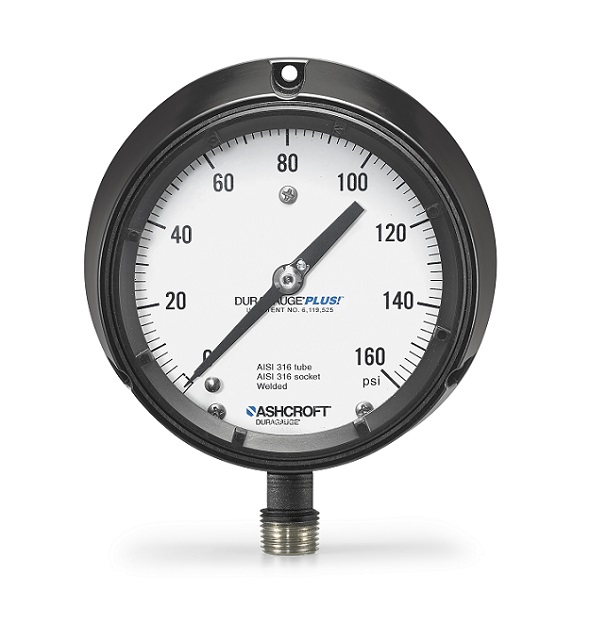

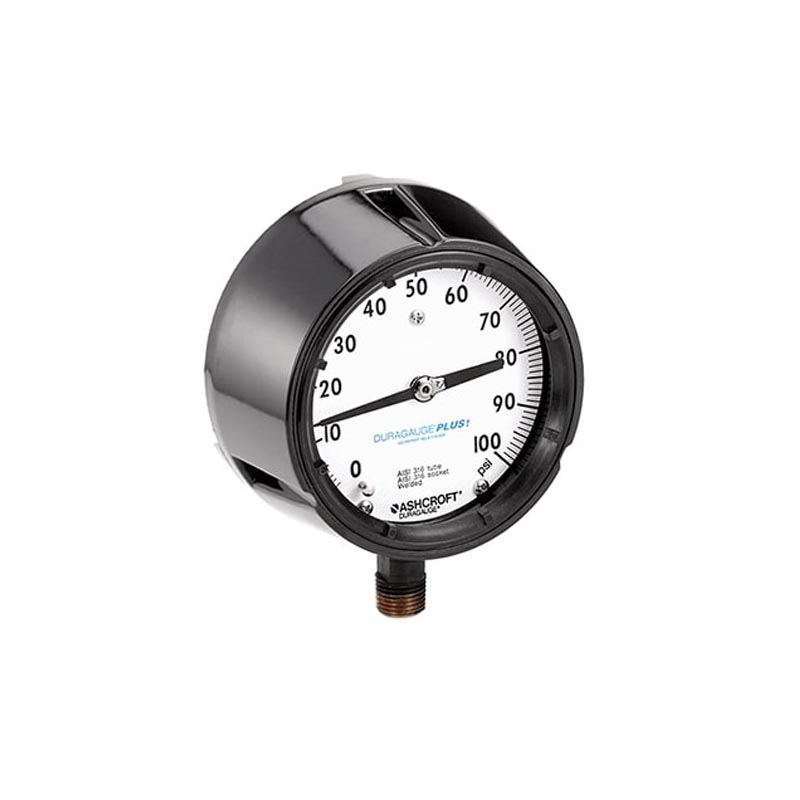

Duragauge Pressure Gauge

Accuracy
±0.5% of span (ASME B40.100, Grade 2A)

Size

4 1/2″

Vacuum, Compound, 15 to 30,000 psi

1⁄4 NPT Male, 1⁄2 NPT Male, 9⁄16-18 UNF-2B (high pressure connection)

Lower, Back

Solid Front

Acrylic, shatter proof glass, non-glare glass (OPT.)
Glass

Case is not sealed and recommended for weather protected environment only
Liquid filled or field fillable: IP66 or NEMA 4X (S&P tube and socket), NEMA 4 (A&R tube and socket Hermetically sealed: IP66

Liquid fill, throttle screw, PLUS!™ Performance

Stem, surface, flush (STD.), pipe, remote (OPT.)

Rotary, adjustable
